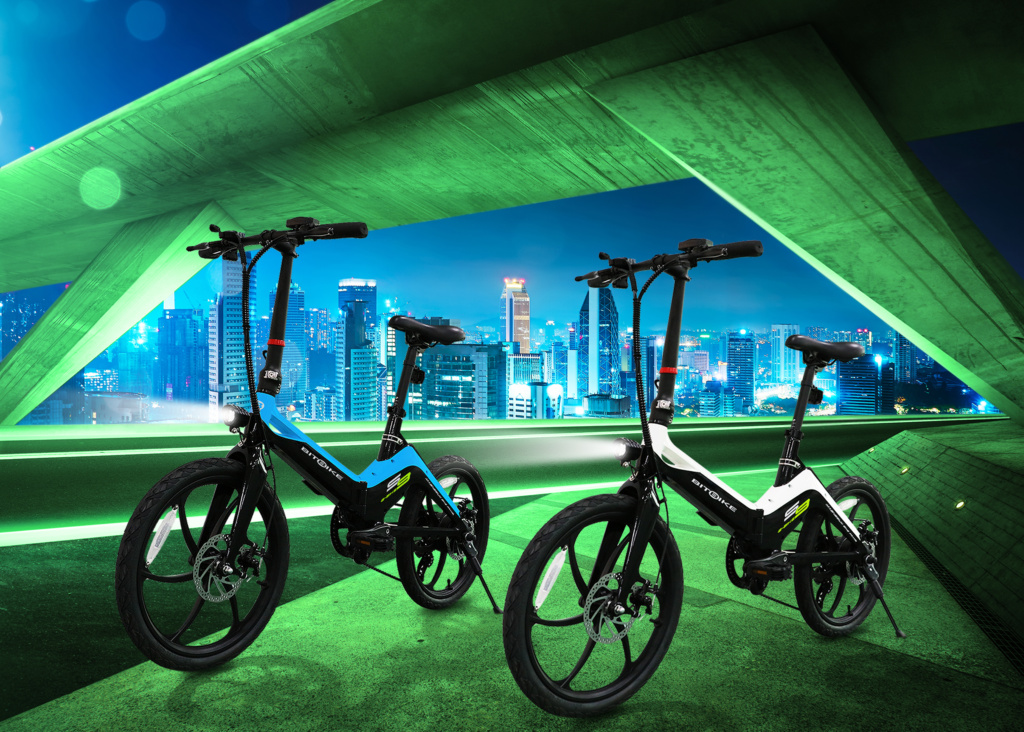

Ease of riding, style and functionality distinguish the S9 electric pedal assisted bike. Thanks to the 36V-8Ah removable battery you can travel up to 55km in assisted mode, allowing you to tackle not only city routes but to aim for cycle tourism. Combining the accessibility and innovation you desire, the S9 can guarantee you a comfortable and safe ride in every situation, thanks to the robust 20 "wheels and the 6-speed gearbox, the 250W 3-speed brushless motor, which can be activated from the control on the handlebar, able to make you reach a maximum speed of 25 km / h. It is characterized by a modern design, with the folding frame in magnesium alloy, the powerful LED light and the LCD display that allows you to choose between 3 modes driving and have the battery status under control. Practical and fast, it folds up with a gesture to be loaded on public transport or in the car.
AVAILABLE COLORS
MIAMI BLUE
WHITE CHALK
CHASSIS: The frame material is magnesium alloy, which is 1/3 lighter than aluminum alloy and has better impact resistance. The frame process adopts magnesium alloy die casting technology, which breaks the traditional welding process and ensures that the whole electric bicycle has no welding.
MOTOR: Electric hub motor: it is a motor positioned in the rear hub of the bicycle. This position offers the best weight balance by compensating that of the battery on the front. This engine is ideal for overcoming uphill slopes of around 10-15% and has a lower consumption in the plains than other similar engines on the market. The power of 250Watts at 36 Volts allows a maximum speed of 25Kmh with a torque of 12Nm. The autonomy that you have in optimal conditions with a charged battery is 55Km.
ELECTRONICS: The 250 watt / 36 volt motor is controlled by an electronic control unit (Controller) which, based on the level of assistance chosen and the effort of the cyclist on the pedals, delivers a certain amount of power. In practice, with a high effort and / or pedaling frequency, the assistance of the electric motor will be greater. The controller this bike is equipped with is equipped with the latest generation powerful PXID chip.
BATTERY: Lithium batteries: on the market today they are the most used ones because they are small and lighter, with longer life. The standard of electric batteries is 36 volts and 7.8 Ah, this capacity guarantees a range of about 45/50 km, which can vary according to the effort of the cyclist on the pedals and the level of power selection on the handlebar control. This bike model has a removable battery with anti-theft key slot.
DASHBOARD: Everything under control: A functional, complete and legible LCD dashboard allows you to keep under control every function, from speed to travel time, from partial to total kilometers, from the remaining battery charge to the selection of the pedal assistance steps.
BRAKES: A key detail: The braking distances of a vehicle are essential for safety, and therefore this bike is equipped with a front and rear disc brake with mechanically operated caliper. This type of brake allows limited stopping distances in all conditions. The conformity of the daisy disc in addition to the aesthetic factor allows a greater dissipation of heat and dust that is created on the braking surface of the disc.
GEAR: Featuring six-speed transmission, rear derailleur, Shimano Tourney TZ has been designed with e-bike lovers in mind. This gearbox installed on the S9 allows us, in fact, to perfectly adapt the selected ratios to the slope of the road and to our physical condition. In this way, it will be really simple to adjust the pedaling power by optimizing it to the path we are about to take.
FOLDABLE FRAME: The peculiarity of this bike is that it has a folding frame, with few and easy operations and without the use of tools it is possible to fold the bike. This offers the possibility of transporting the bicycle occupying a small space such as in the trunk of the car or the locker of a boat.
TECHNICAL FEATURES:
- MODEL: S9
- WHEELS DIAMETER: 20”
- FRAME MATERIAL: MAGNESIUM
- FOLDING FRAME: YES
- REMOVABLE BATTERY: YES
- BATTERY TYPE: LG LITHIUM CELL
- BATTERY CAPACITY: 36V / 7.8Ah
- MOTOR: 36V 250W / IPX4
- SPEED SENSOR: SI
- SPEED SENSOR MODE: 3 STEP
- SHIMANO GEARBOX: 6 REPORTS
- BRAKES: FRONT AND REAR DISC
- FULL SPEED: 25 Kmh
- AUTONOMY: 45 km
- MAXIMUM TRANSPORTABLE WEIGHT: 120 Kg
- BIKE WEIGHT: 19,5 Kg
- UNFOLDED BIKE SIZE: 1520×570×1050MM
- DIMENSIONE BICI PIEGATA: 810×650×600mm
